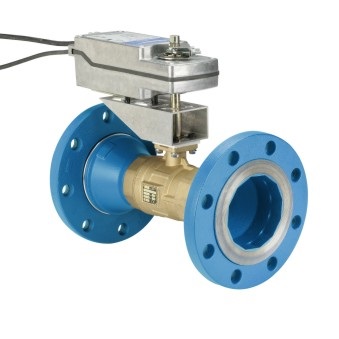

VG12A5 & M9220 ON/OFF 120VAC SR Normally Closed Valve`

Obsolete

Read more VG12A5JV 94NBAC2W 4" Cv 176 with switchesRequest Quote
Read more VG12A5JU 94NBAC2W 4" Cv 117 with switchesRequest Quote
Read more VG12A5HW 94NBAC2W 3" Cv 211 with switchesRequest Quote
Read more VG12A5HW 94NBAA2W 3" Cv 211 w/out switchesRequest Quote
Read more VG12A5HV 94NBAA2W 3" Cv 176 w/out switchesRequest Quote
Read more VG12A5HU 94NBAA2W 3" Cv 117 w/out switchesRequest Quote
Read more VG12A5HT 94NBAA2W 3" Cv 74 w/out switchesRequest Quote
Read more VG12A5GU 94NBAA2W 2 1/2" Cv 117 w/out switchesRequest Quote
Read more VG12A5GT 94NBAA2W 2 1/2" Cv 74 w/out switchesRequest Quote
Read more VG12A5GS 94NBAA2W 2 1/2" Cv 47 w/out switchesRequest Quote
Read more VG12A5HV 94NBAC2W 3" Cv 176 with switchesRequest Quote
Read more VG12A5HU 94NBAC2W 3" Cv 117 with switchesRequest Quote
Read more VG12A5HT 94NBAC2W 3" Cv 74 with switchesRequest Quote
Read more VG12A5GU 94NBAC2W 2 1/2" Cv 117 with switchesRequest Quote
Read more VG12A5GT 94NBAC2W 2 1/2" Cv 74 with switchesRequest Quote
Read more VG12A5GS 94NBAC2W 2 1/2" Cv 47 with switchesRequest Quote
Read more VG12A5JV 94NBAA2W 4" Cv 176 w/out switchesRequest Quote
Read more VG12A5JU 94NBAA2W 4" Cv 117 w/out switchesRequest Quote

Description


  • 2 Way 2 1/2 – 4″ Flanged Ball Valve & Spring Return Actuator
  • Normally Closed – Without End Switch (models end in A)
  • Normally Closed – With Two Auxiliary Switches (models end in C)
  • M9220 ON/OFF Actuator
  • 120 VAC
  • Characterized flow control disc
  • Stainless steel ball and stem
  • Graphite-reinforced PTFE seats
  • Equal percentage fow characteristics
  • Rated for water or 50% glycol solutions
  • 0 to 284° F fluid temperature rating
  • ASME class 150 flange
  • 100 psi closeoff pressure rating
  • 250 psi static pressure rating decreasing to 215 psig at 284° F fluid temp
  • 50 psi maximum differential pressure
  • 500:1 rangeability
  • Actuator and valve bodies can be ordered separately



Download Product Spec Sheet

Additional information

Manufacturer

Johnson Controls
