VG12A5 & M9220 Floating SR Normally Open Valve

Obsolete

Read more VG12A5JV 92NAGC2W 4" Cv 176 with switchesRequest Quote
Read more VG12A5JU 92NAGC2W 4" Cv 117 with switchesRequest Quote
Read more VG12A5HW 92NAGC2W 3" Cv 211 with switchesRequest Quote
Read more VG12A5HV 92NAGC2W 3" Cv 176 with switchesRequest Quote
Read more VG12A5HU 92NAGC2W 3" Cv 117 with switchesRequest Quote
Read more VG12A5HT 92NAGC2W 3" Cv 74 with switchesRequest Quote
Read more VG12A5GU 92NAGC2W 2 1/2" Cv 117 with switchesRequest Quote
Read more VG12A5GT 92NAGC2W 2 1/2" Cv 74 with switchesRequest Quote
Read more VG12A5GS 92NAGC2W 2 1/2" Cv 47 with switchesRequest Quote
Read more VG12A5JV 92NAGA2W 4" Cv 176 w/out switchesRequest Quote
Read more VG12A5JU 92NAGA2W 4" Cv 117 w/out switchesRequest Quote
Read more VG12A5HW 92NAGA2W 3" Cv 211 w/out switchesRequest Quote
Read more VG12A5HV 92NAGA2W 3" Cv 176 w/out switchesRequest Quote
Read more VG12A5HU 92NAGA2W 3" Cv 117 w/out switchesRequest Quote
Read more VG12A5HT 92NAGA2W 3" Cv 74 w/out switchesRequest Quote
Read more VG12A5GU 92NAGA2W 2 1/2" Cv 117 w/out switchesRequest Quote
Read more VG12A5GT 92NAGA2W 2 1/2" Cv 74 w/out switchesRequest Quote
Read more VG12A5GS 92NAGA2W 2 1/2" Cv 47 w/out switchesRequest Quote

Description

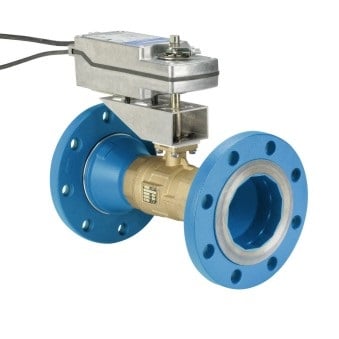

  • 2 Way 2 1/2 – 4″ Flanged Ball Valve & Spring Return Actuator
  • Normally Open  – Without End Switch (models end in A)
  • Normally Open – With Two Auxiliary Switches (models end in C)
  • M9220 Floating Actuator
  • 24 VAC
  • Characterized flow control disc
  • Stainless steel ball and stem
  • Graphite-reinforced PTFE seats
  • Equal percentage fow characteristics
  • Rated for water or 50% glycol solutions
  • 0 to 284° F fluid temperature rating
  • ASME class 150 flange
  • 100 psi closeoff pressure rating
  • 250 psi static pressure rating decreasing to 215 psig at 284° F fluid temp
  • 50 psi maximum differential pressure
  • 500:1 rangeability
  • Actuator and valve bodies can be ordered separately



Download Product Spec Sheet

Additional information

Manufacturer

Johnson Controls
