Description

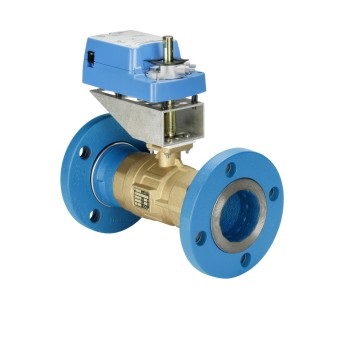

• 2 Way 2 1/2 – 4″ Flanged Ball Valve & Non-Spring Return Actuator

• M9124 On/Off (Floating) with two auxiliary switches

• 24 VAC

• Characterized flow control disc

• Stainless steel ball and stem

• Graphite-reinforced PTFE seats

• Equal percentage fow characteristics

• Rated for water or 50% glycol solutions

• 0 to 284° F fluid temperature rating

• ASME class 150 flange

• 100 psi closeoff pressure rating

• 250 psi static pressure rating decreasing to 215 psig at 284° F fluid temp

• 50 psi maximum differential pressure

• 500:1 rangeability

• Actuator and valve bodies can be ordered separately
